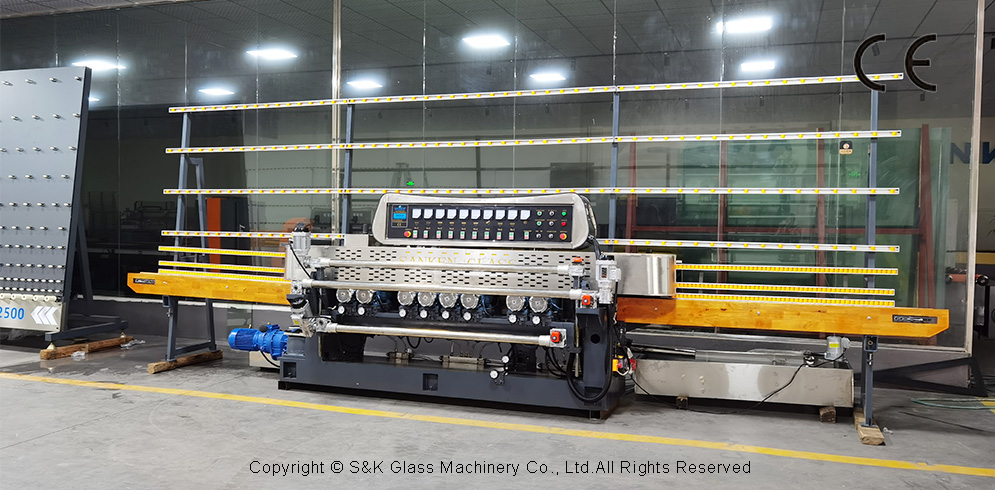

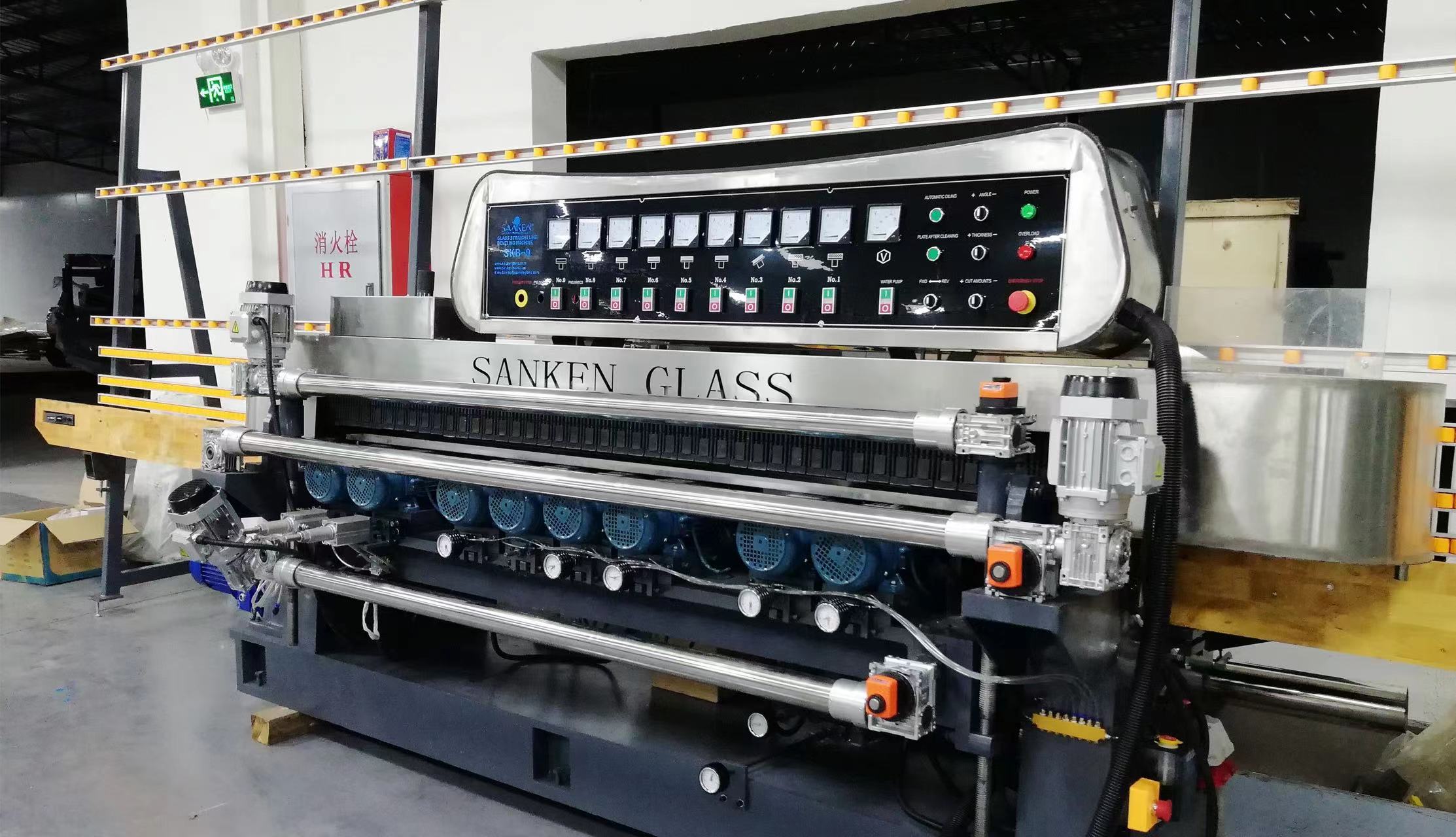

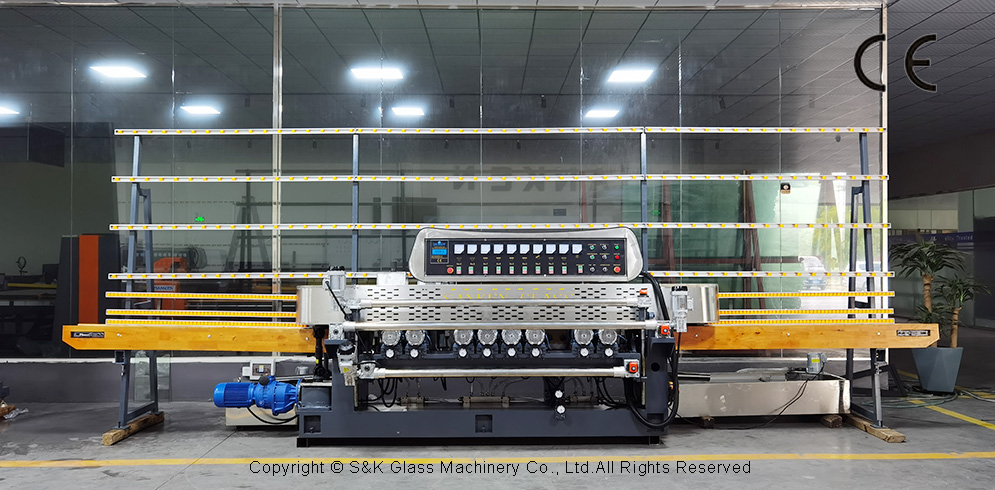

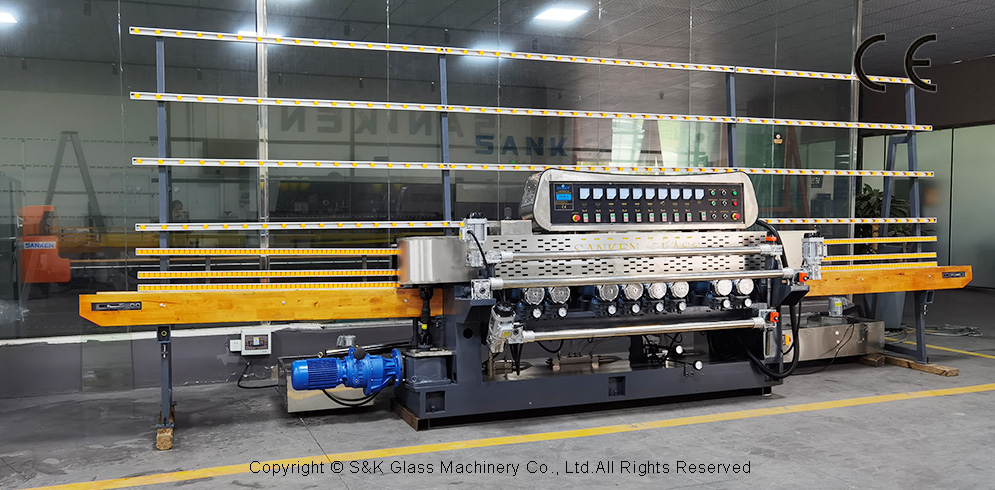

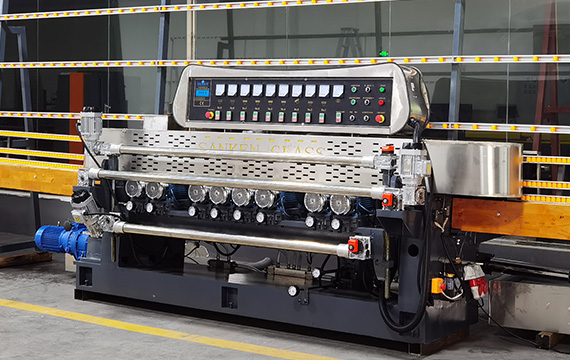

SKB-9 glass straight line beveled edging machine
FEATURE
SANKEN glass straight line beveled edging machine, is positioned at the highest end of the glass deep-processing industry, we manufactured this type of glass straight line beveled edging machine with the most advanced technology and made by the best materials. SANKEN glass straight line beveled edging machine has the advantages of perfect glass polishing effect of mirrors and glass, with high stability, extremely low failure rate, and very much convenient maintenance.  The main parts of the glass straight line beveled edging machine are combined with glass loading section, glass grinding section and glass unloading section. The protective cover and structure framework are installed with stainless steel or other special treatment steel. Controlled by PLC touch screen or not.  And SANKEN's glass straight line beveled edging machine a frequency speed control system, for different size and thickness glass has best grinding and polishing effect. For example, the glass can supply lubricating oil and clean the glass pressure plate inside the equipment to ensure that the moving part of the glass is clean and tidy, and there is no glass slag, so as to ensure that the glass will not be chipped and damaged. It will be very helpful for the maintenance of customers in the future.
MAIN SPECIFICATION
1. Min glass size: 100 * 100 mm 2. Max glass size: 1800 * 2400 mm 3. Max. size of bevel edge: 40 mm 4. Thickness: 3-12 mm 5. Bevel angle: 0~25 degree 6. Total power: 21 KW/ 380V/ 50Hz 7. Water: Self-circulation,Tap water(civilian standards) 8. Machine size: 6600 * 1200 * 2500 mm 9. Weight: 3700 kg 10. Control: PLC touch screen 11. HS CODE: 8464201000
ADVANTAGE

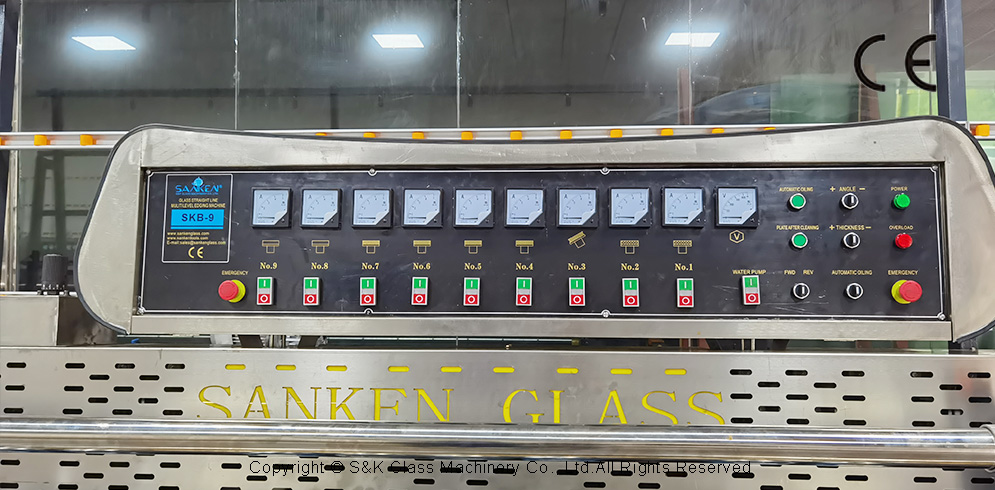

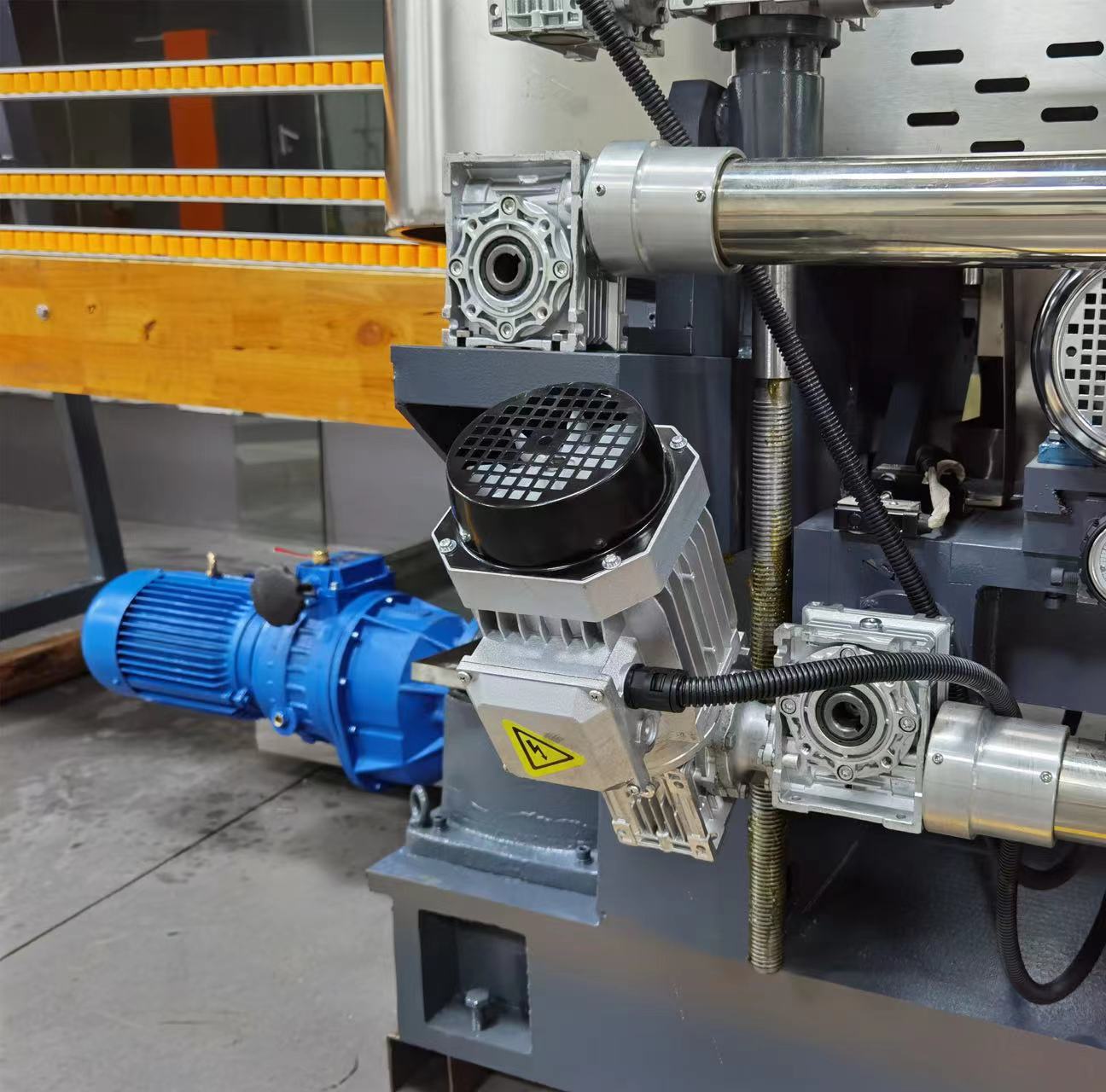

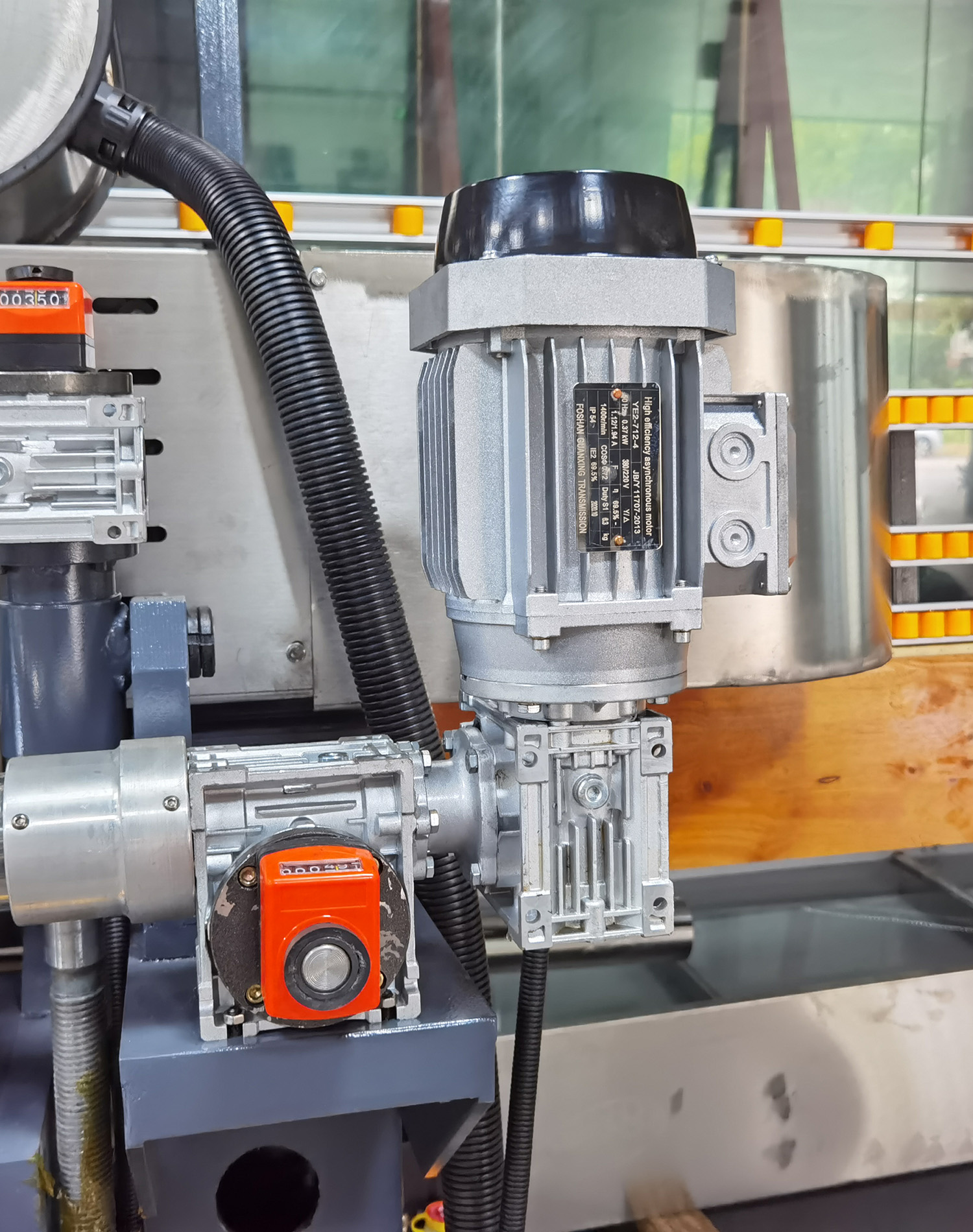

(1) SANKEN'S glass straight line beveled edge grinding machine is easy operated, could be made with PLC and touch screen. (2) glass straight line beveled edge grinding machine delivery speed can be adjusted,0.7-3.5m/min. (3) The glass straight line beveled edge grinding machine adopts high-quality forged steel to make the main frame, which is stable, corrosion-resistant and durable. (4) The glass straight line beveled edge grinding machine adopts SANKEN customized motor, stable performance, low noise, low failure and long service life (5) Perfect glass polishing effect, high gloss of glass, indicating smoothness.. (6) SANKEN'S glass straight line beveled edge grinding machine was designed with overseas newest advanced technology, and manufactured it based on Chinese glass processing technique. SANKEN's glass straight line beveling machine has the good airtightness, so that it is no water leak. (7) The drainage part of the glass straight line beveled edge grinding machine adopts high-quality large-diameter stainless steel pipes, and the drainage is smooth and not blocked, ensuring the processing effect of the glass and the cleanliness. (8) The glass straight line beveled edge grinding machine uses a belt made of high-quality materials for glass transmission, and the glass is conveyed smoothly, which further protects the glass from scratches and other damage. (9) The electronic control part of the glass straight line beveled edge grinding machine adopts French Schneider electronic products, the circuit runs stably and safely. (10) SANKEN glass straight line beveled edge grinding machine has the advantages of perfect polishing effect, with high stability, extremely low failure rate, and very much convenient maintenance.
VENUE OF APPLICATION
SANKEN glass straight line beveled edge grinding machine is specially designed for glass deep-processing, such as Glass Drilling, Glass Tempering Production Line, Laminating Line, IG Insulation Line, Silk-Screen Printing Line, etc.
